L-2C-45S 4.5T SINGLE POINT
Model No.: L-2C-45S
Chain Drive Single Lock

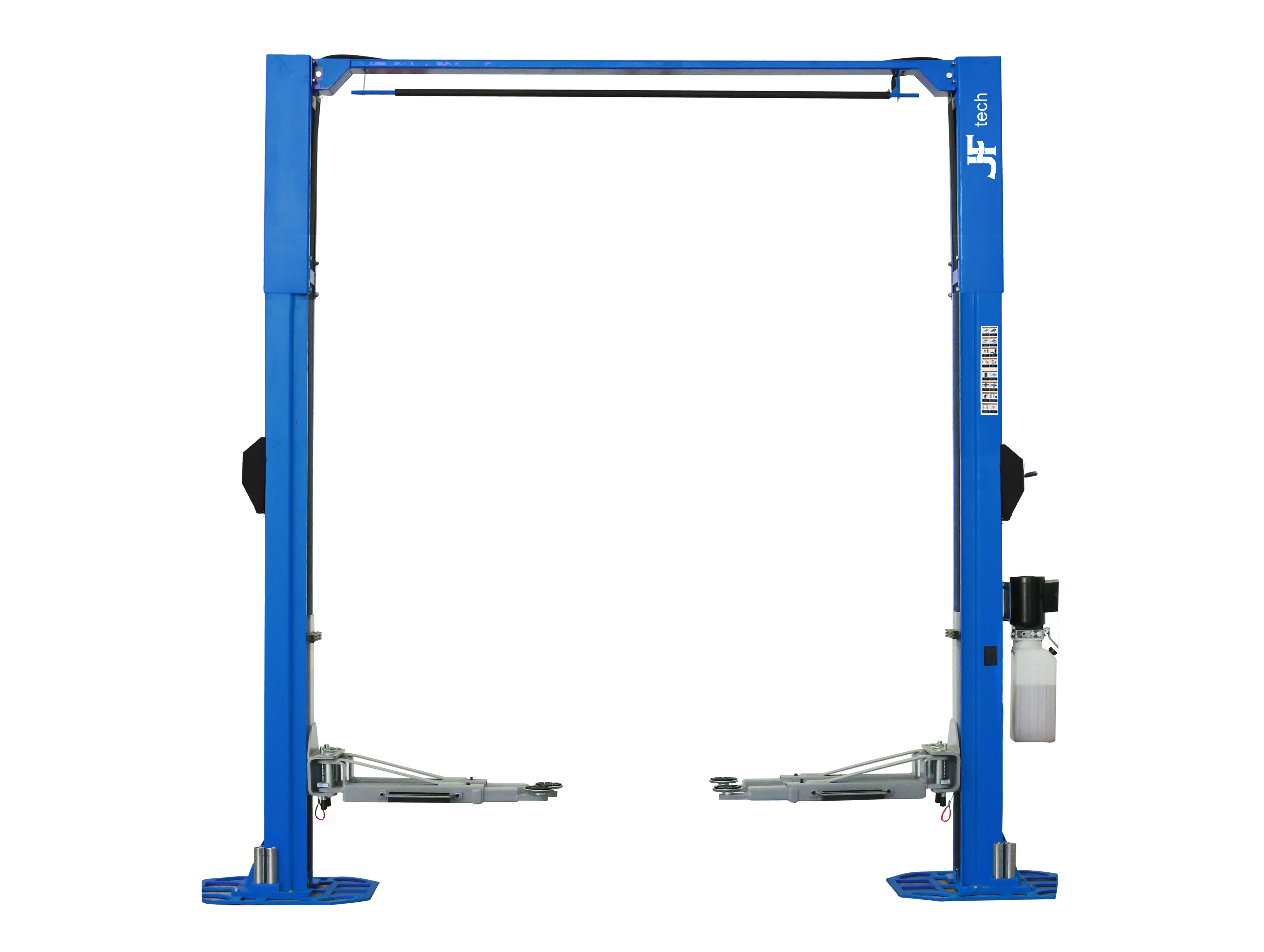

2 POST CAR LIFT L-2C-45S 4.5T/10000LB

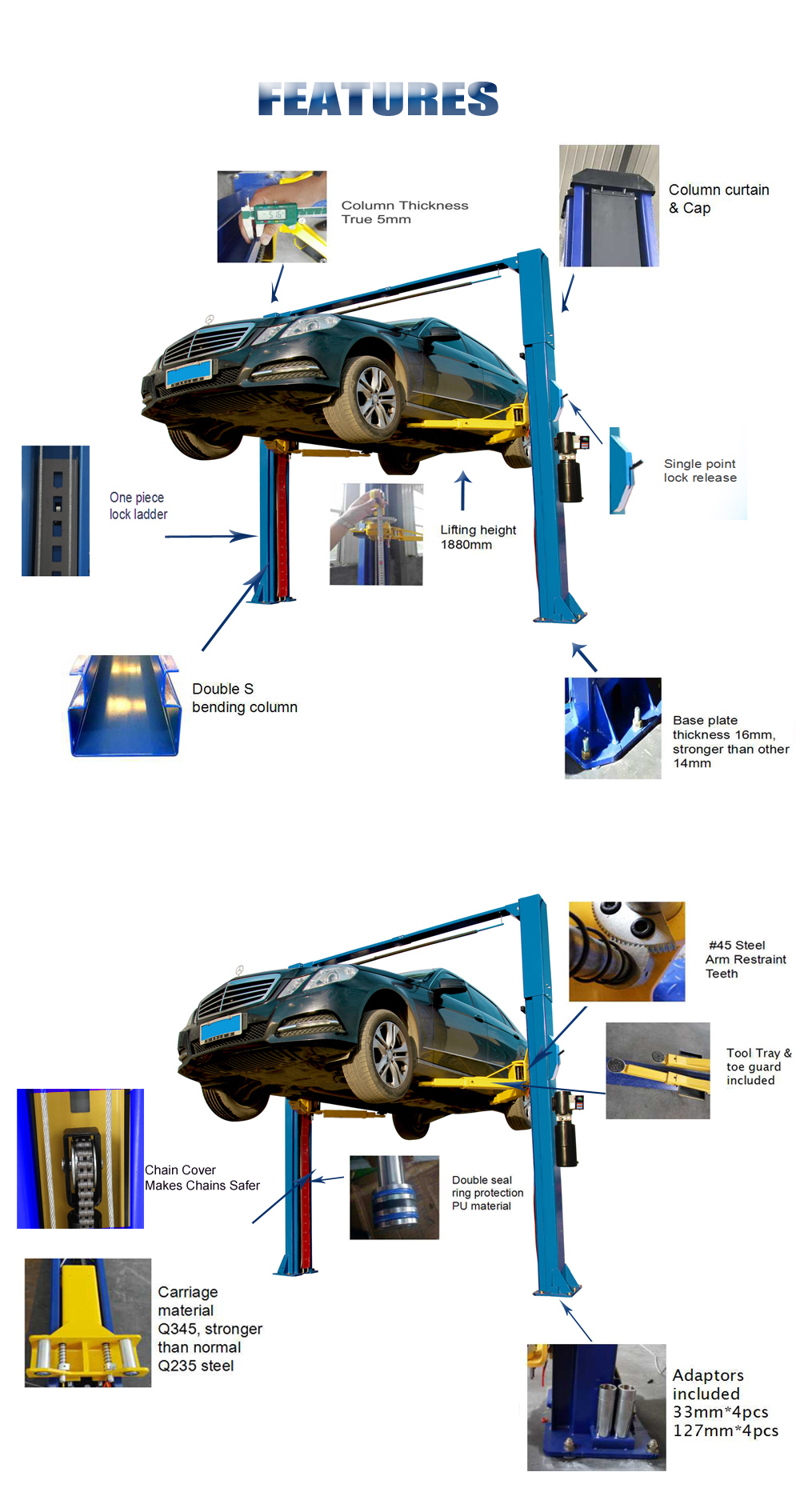

· 4500kg Capacity
· Double “S” Column Design
· Symmetric Arms
· Clear Floor Type
· Dual Hydraulic Chain Roller Drive Cylinder System
· Free 8-PC Pad Extension Kit(33mm/127mm)
· Automatic Arm Restraints
· Single Point Lock Release
· Mounting Hardware Included
· Shipping Weight: 680kg.
· 4500kg Capacity
· Double “S” Column Design
· Symmetric Arms
· Clear Floor Type
· Dual Hydraulic Chain Roller Drive Cylinder System
· Free 8-PC Pad Extension Kit(33mm/127mm)
· Automatic Arm Restraints
· Single Point Lock Release
· Mounting Hardware Included
· Shipping Weight: 680kg.
________________________________________________________________________________________________________________

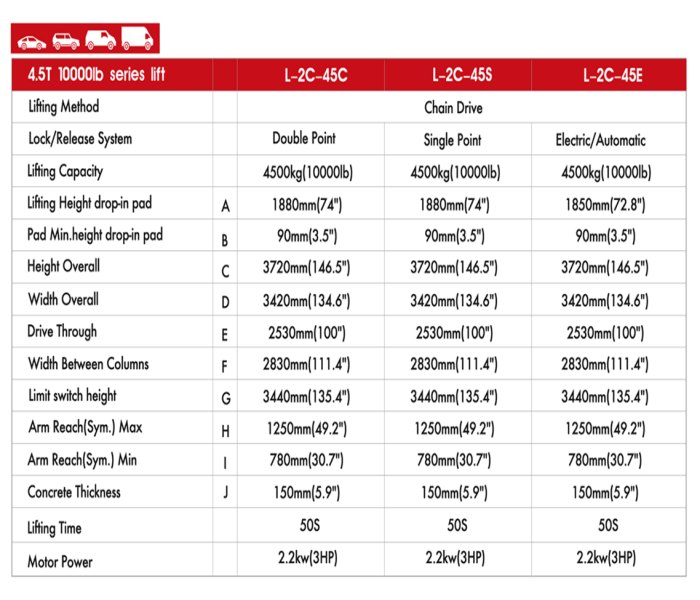

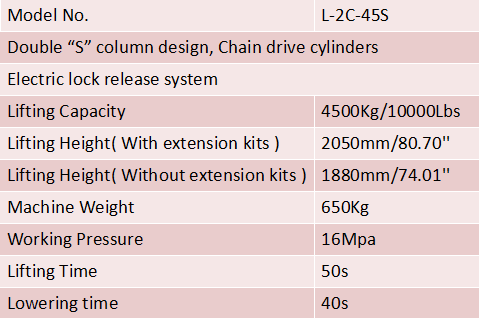

Specifications
Specifications

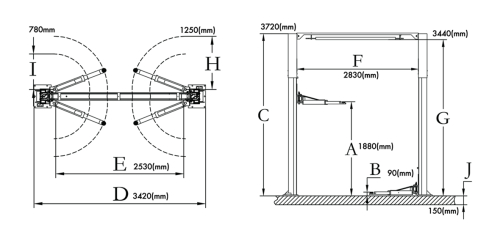

| Name | L-2C-45S | |
| Lifting Method | Chain Drive | |
| Lock/Release System | Single Point | |
| Lifting Capacity | 4500kg(9000lb) | |
| Lifting Height drop-in pad | A | 1850mm(70.9") |
| Pad Min.height drop-in pad | B | 90mm(3.5") |
| Height Overall | C | 3720mm(146.5") |
| Width Overall | D | 3420mm(134.6") |
| Drive Through | E | 2530mm(100") |
| Width Between Columns | F | 2830mm(110") |
| Limit switch height | G | 3440mm(135.4”) |
| Arm Reach(Sym.) Max | H | 1250mm(49.2")) |
| Arm Reach(Sym.) Min | I | 780mm(30.7") |
| Concrete Thickness | J | 150mm(5.9") |
| Lifting Time | 50s | |
| Motor Power | 2.2kw(3HP) | |
PARTS
_____________________________________________________________________________________________________
________________________________________________________________________________________________________________

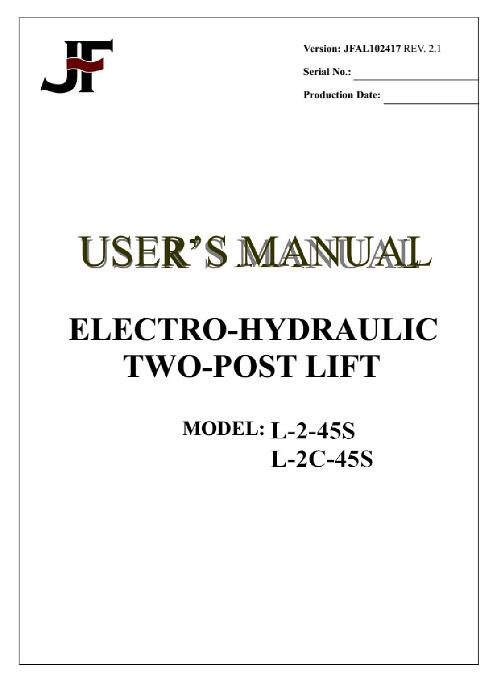

Manual
Manual
Click the image above to download the manual for L-2C-45S
Ask our sales representitives for download password please. Thank you.
Click here to download catalogue
Ask our sales representitives for download password please. Thank you.Catalogue
