L-2-45E 4.5T ELECTRIC
Model No.: L-2-45E
Chain Drive Electric Lock

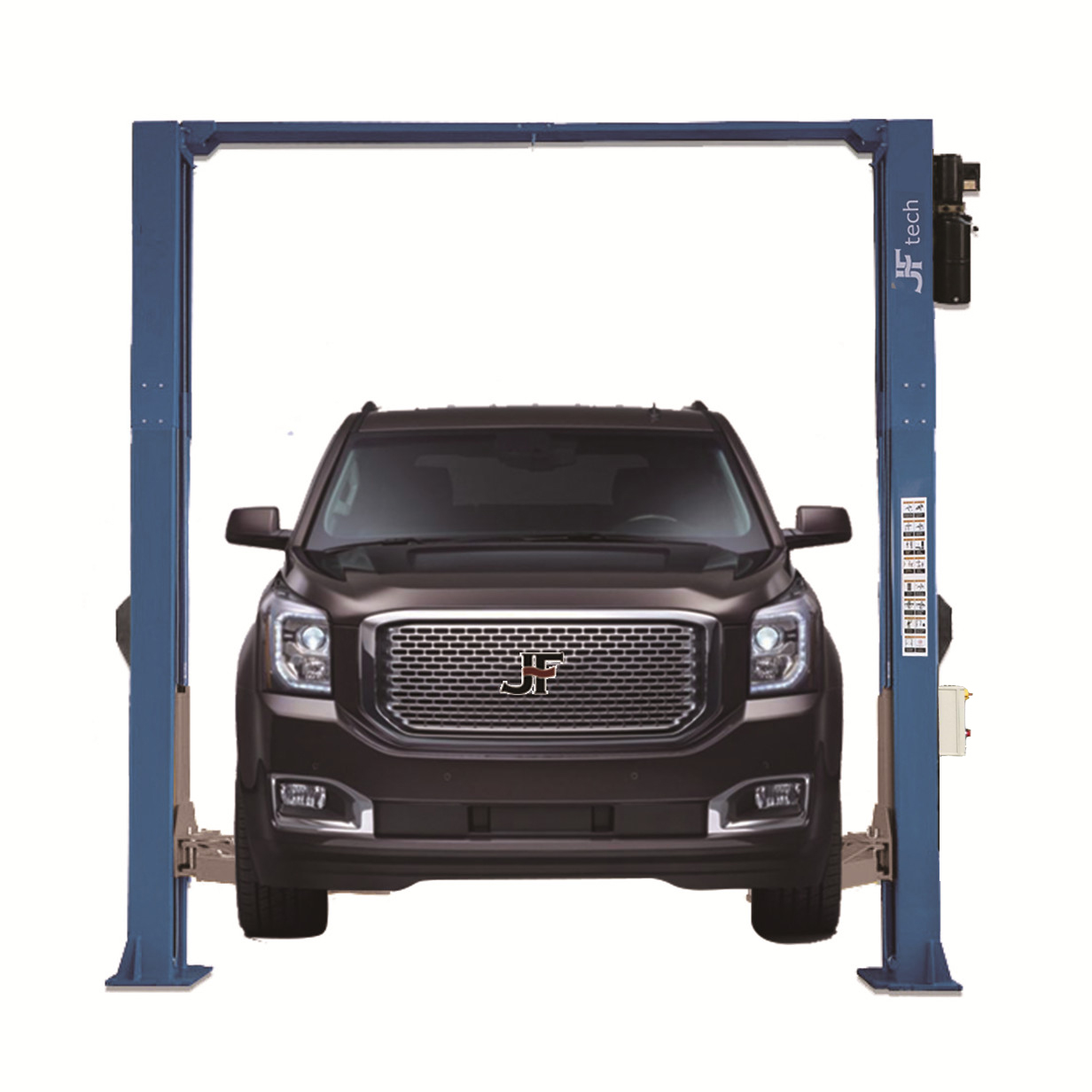

2 POST CAR LIFT L-2-45E 4.5T/10000LB
· 4500kg Capacity

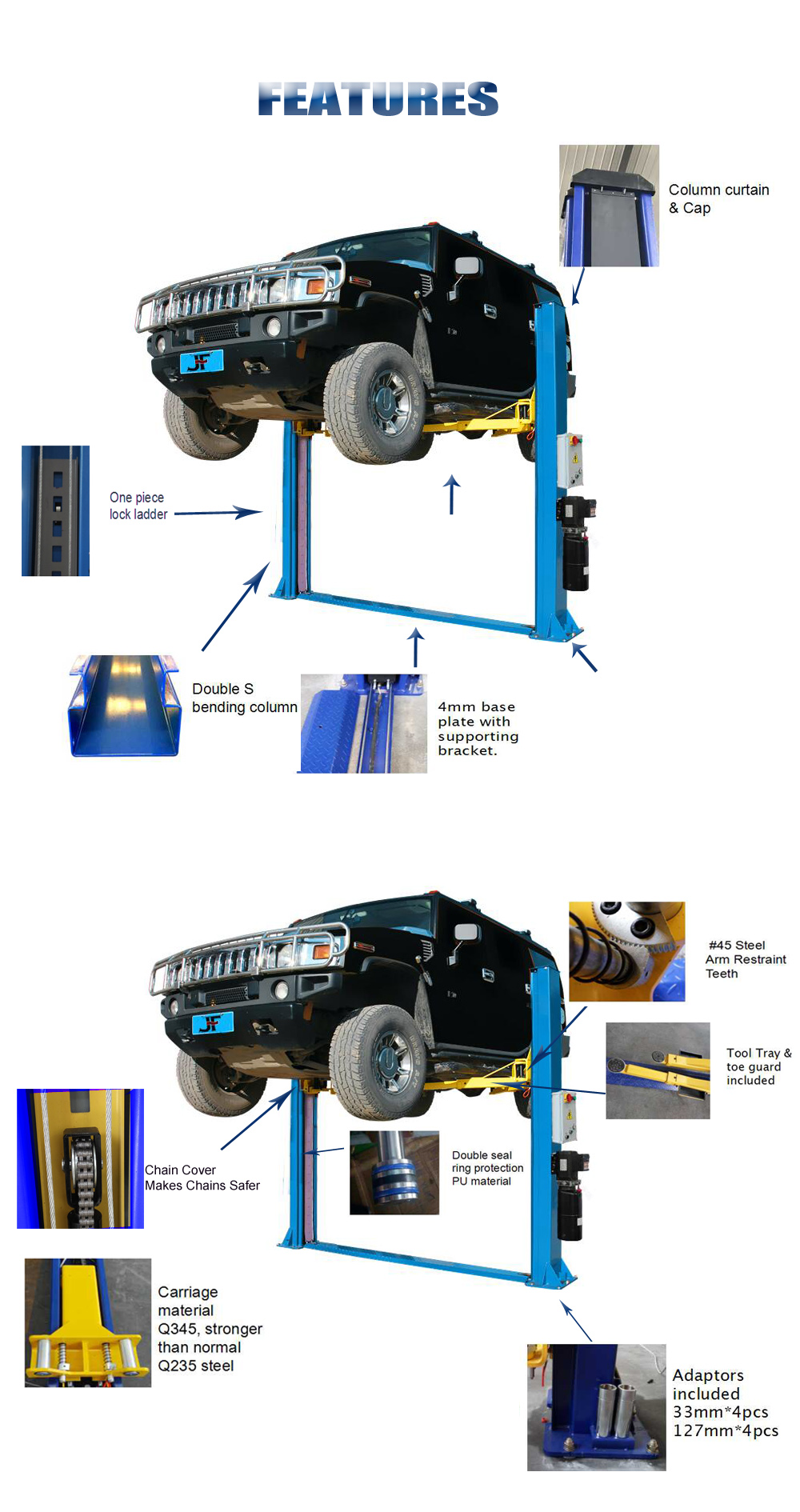

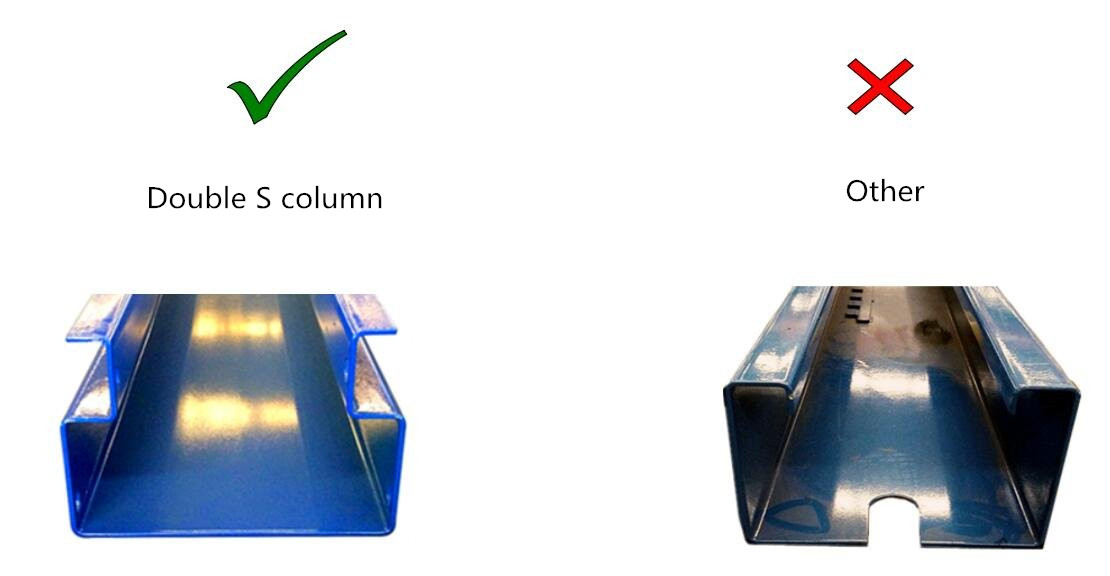

· Double “S” Column Design
· Symmetric Arms

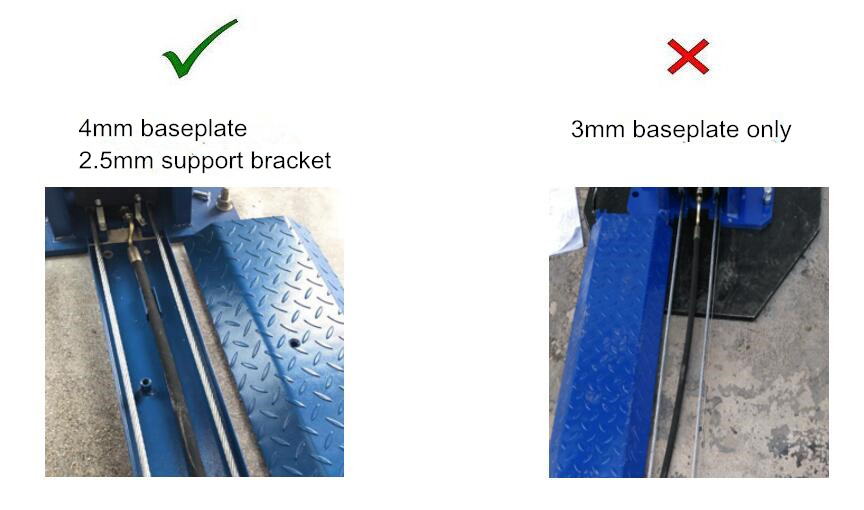

· Base Plate Type

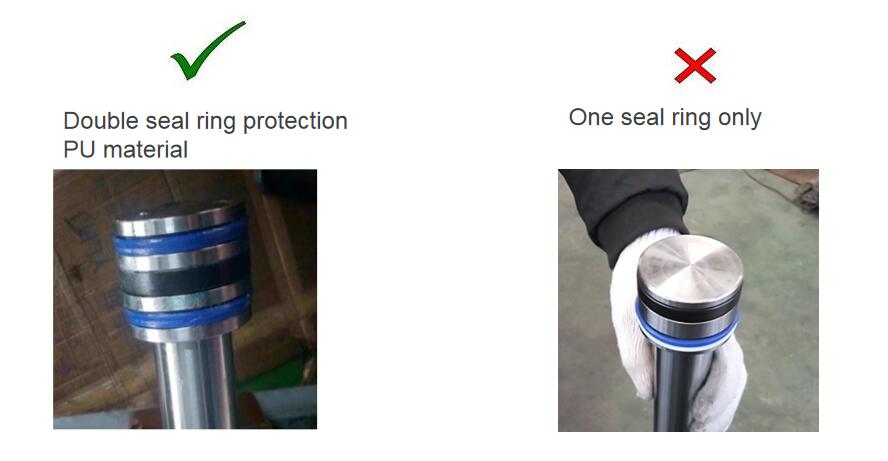

· Dual Hydraulic Chain Roller Drive Cylinder System
· Free 8-PC Pad Extension Kit(33mm/127mm)

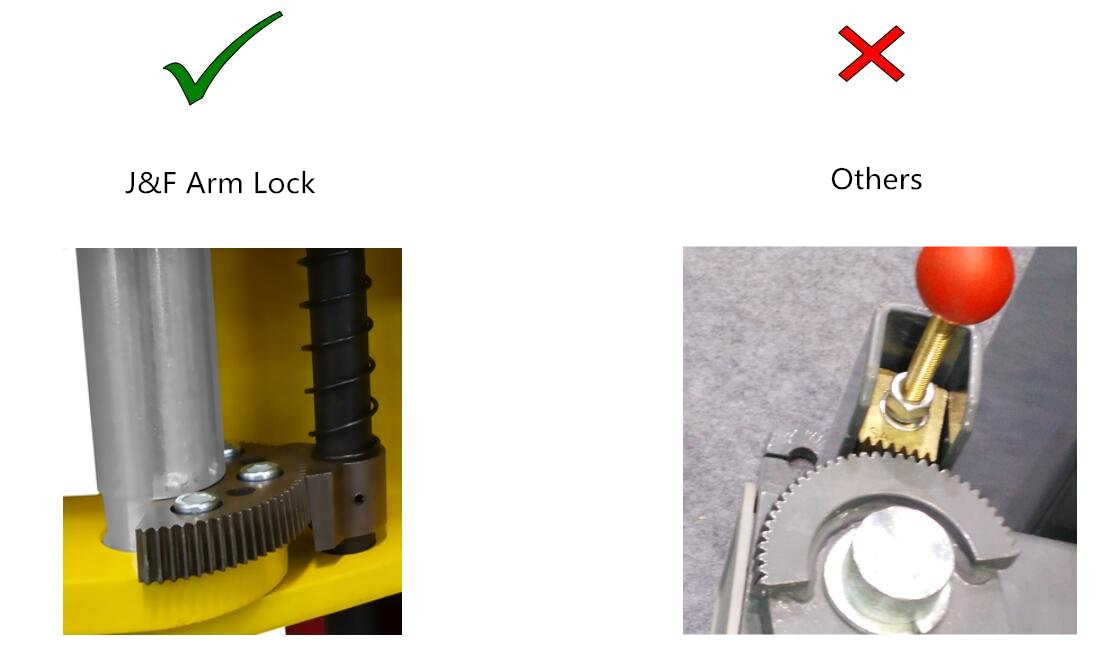

· Automatic Arm Restraints
· Electric Lock Release

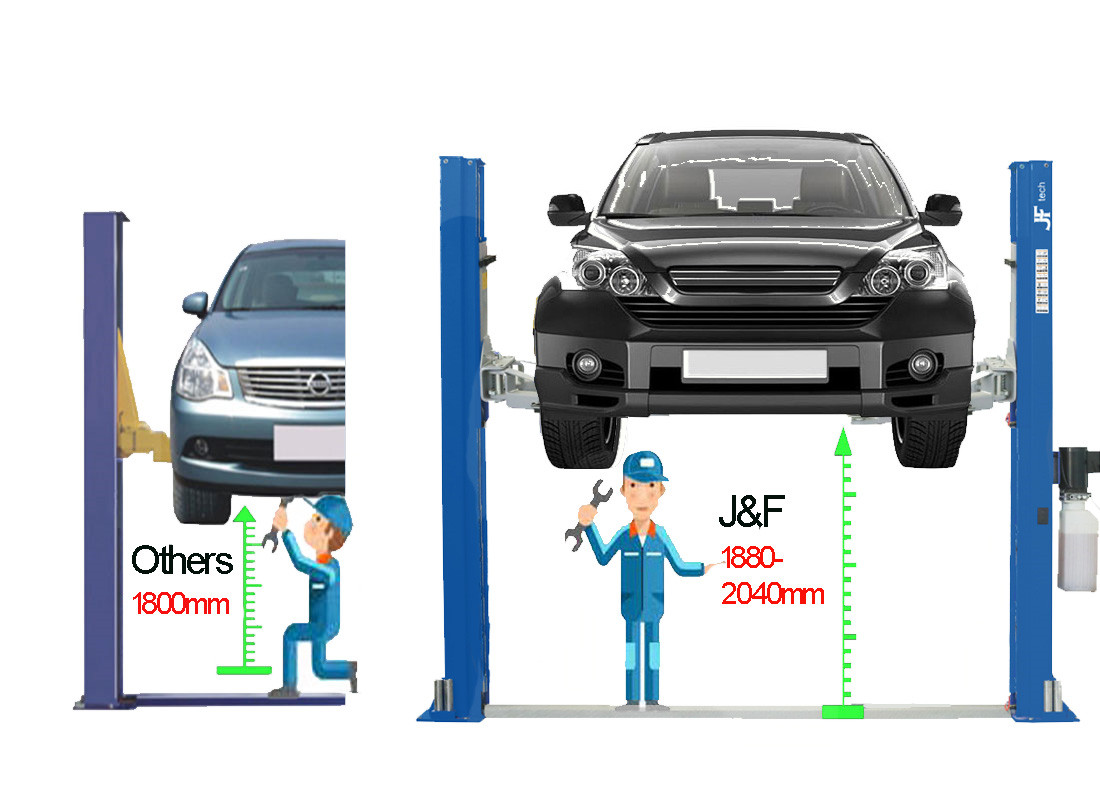

· Designed For Low Ceiling Clearance Columns(2880mm)
· Mounting Hardware Included
· Shipping Weight: 620kg.
You need a powerful car lift!
· 4500kg Capacity
· Double “S” Column Design
· Symmetric Arms
· Base Plate Type
· Dual Hydraulic Chain Roller Drive Cylinder System
· Free 8-PC Pad Extension Kit(33mm/127mm)
· Automatic Arm Restraints
· Electric Lock Release
· Designed For Low Ceiling Clearance Columns(2880mm)
· Mounting Hardware Included
· Shipping Weight: 620kg.
You need a powerful car lift!
________________________________________________________________________________________________________________

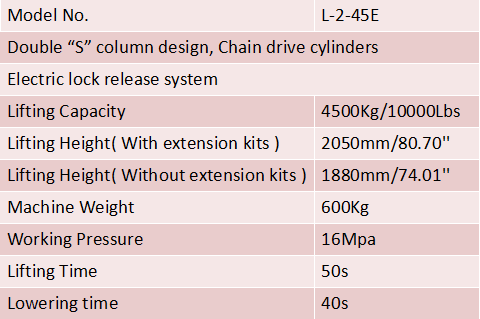

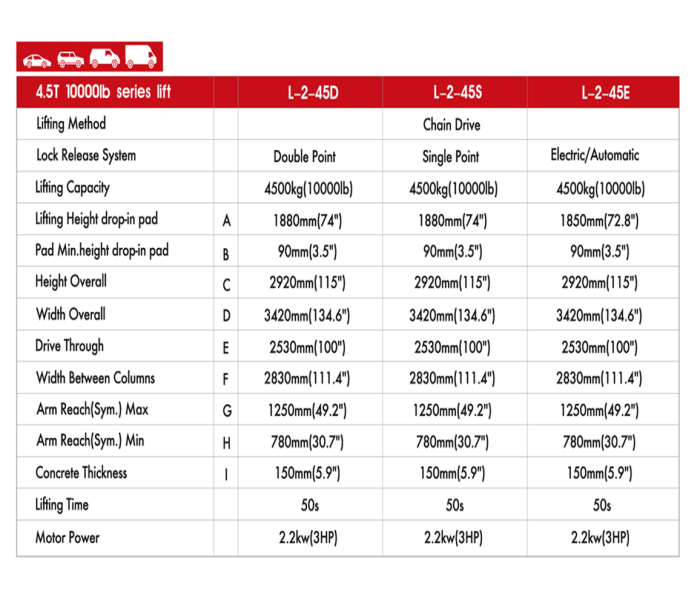

Specifications
Specifications

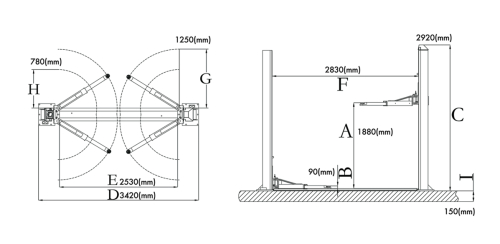

| Name | L-2-45E | |
| Lifting Method | Chain Drive | |
| Lock/Release System | Electric | |
| Lifting Capacity | 4500kg(9000lb) | |
| Lifting Height drop-in pad | A | 1850mm(74") |

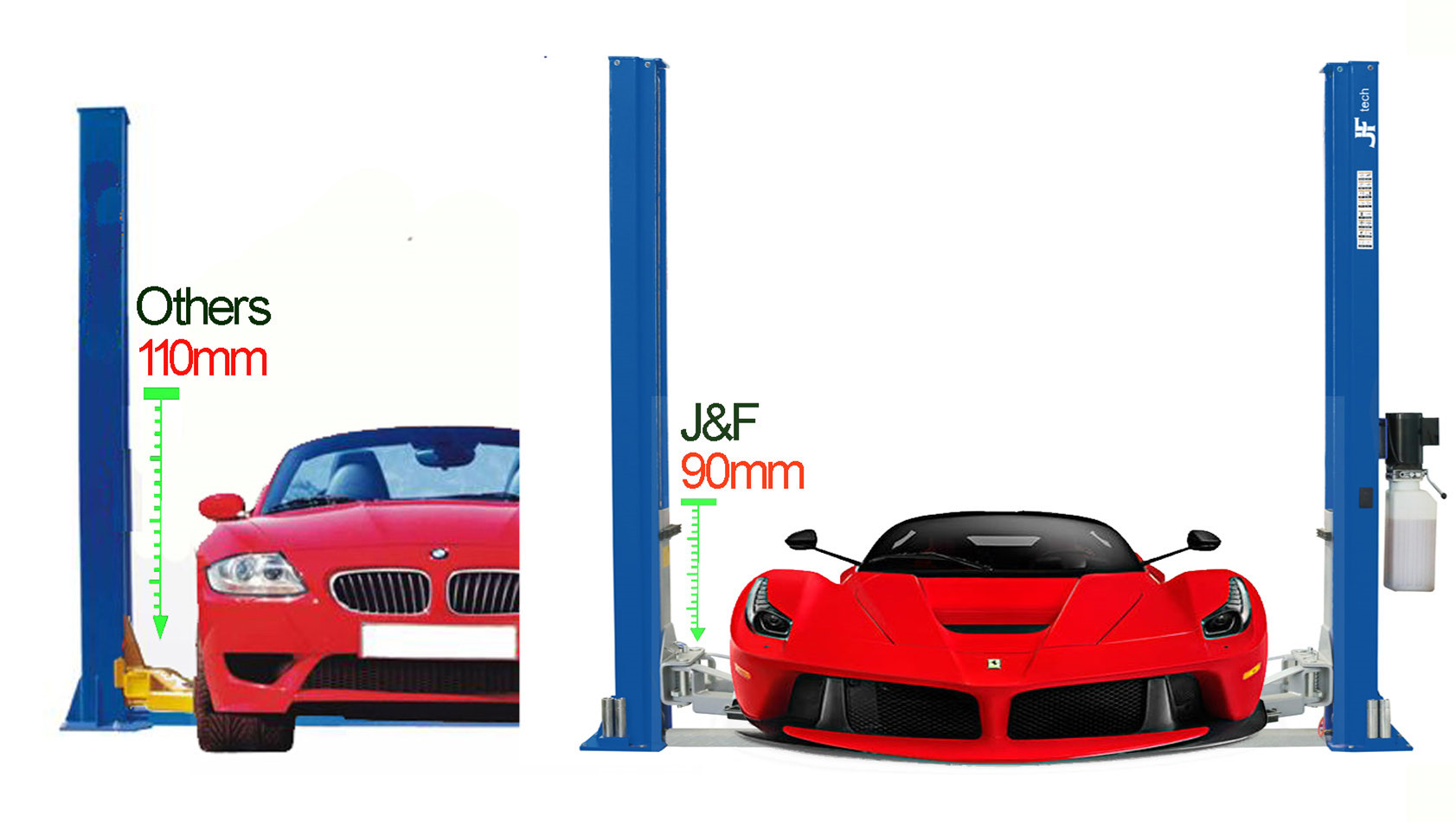

| Pad Min.height drop-in pad | B | 90mm(3.5") |
| Height Overall | C | 2920mm(115") |
| Width Overall | D | 3420mm(134.6") |
| Drive Through | E | 2530mm(100") |
| Width Between Columns | F | 2830mm(111.4") |
| Arm Reach(Sym.) Max | G | 1250mm(49.2") |
| Arm Reach(Sym.) Min | H | 780mm(30.7") |
| Concrete Thickness | I | 150mm(5.9") |
| Lifting Time | 50s | |
| Motor Power | 2.2kw(3HP) |
________________________________________________________________________________________________________________

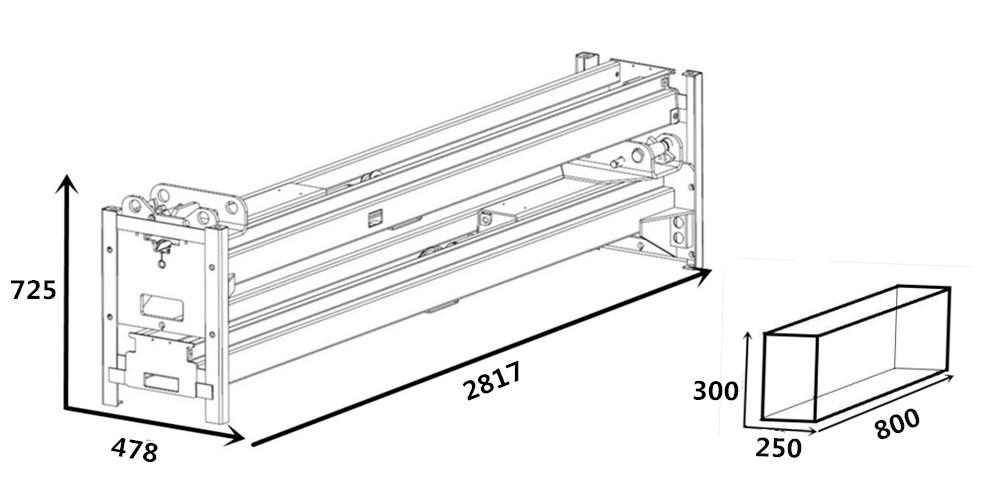

Package Size(MM)
20' Container Load Soltuion(24sets)
40' Container Load Soltuion(24sets)
______________________________________________________________________________________________________
PARTS
PARTS
________________________________________________________________________________________________________________
Manual
Manual
Click the image above to download manual book for L-2-45E
Ask our sales representitives for download password please. Thank you.
________________________________________________________________________________________________________________
Catalogue
Click here to download catalogue
Ask our sales representitives for download password please. Thank you.Catalogue
